Industrial manipulator: effortless handling from 10 to 100 kg
French manufacturer of industrial manipulator arms since 2007
Neoditech designs and manufactures industrial manipulator arms that amplify the operator’s strength to lift and position loads from 10 to 100 kg effortlessly. Your operators gain in ergonomics, your lines gain in performance, with no compromise on safety.
What is an industrial manipulator?
An industrial manipulator arm is a handling assistance device that allows an operator to move a load with minimal effort, the part remaining as if weightless.
The operator stays in control: they guide the arm, choose the movement and decide on the positioning. The manipulator amplifies their movement and carries the load for them. It is neither a robot nor a cobot: it is an extension of the operator, designed to eliminate hazardous movements (load carrying, twisting, repetition) while preserving the precision of manual work.
Our industrial handling solutions
Four ranges cover all industrial handling needs, from the technical part to the logistics parcel.

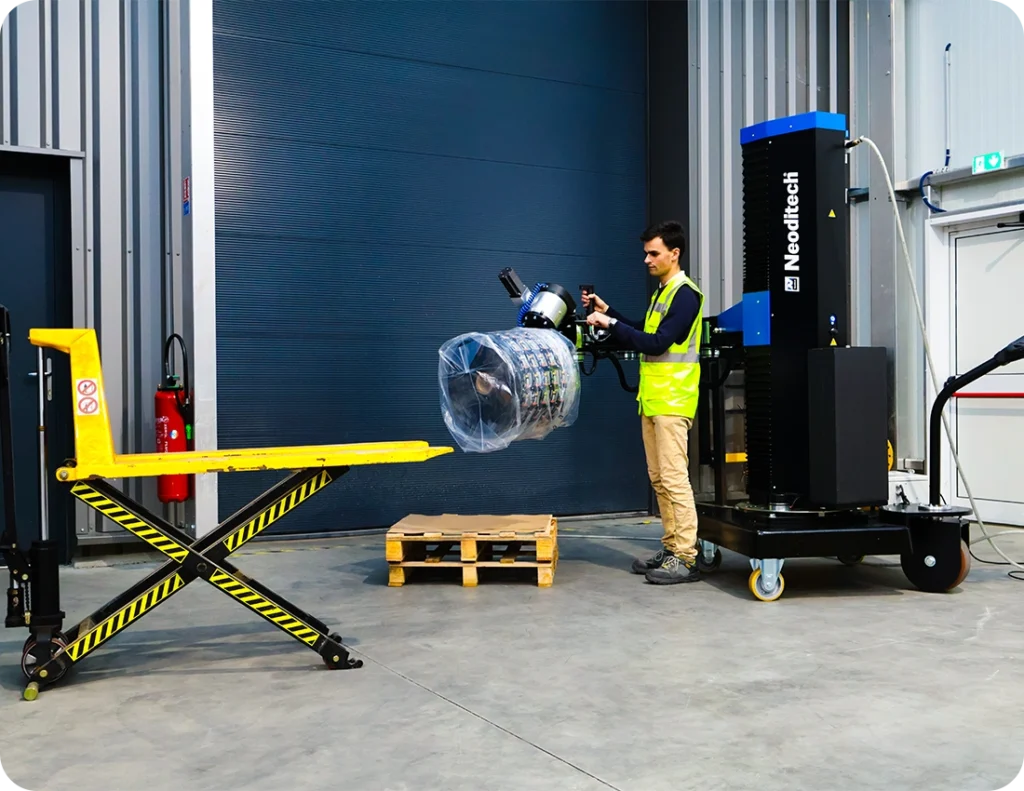

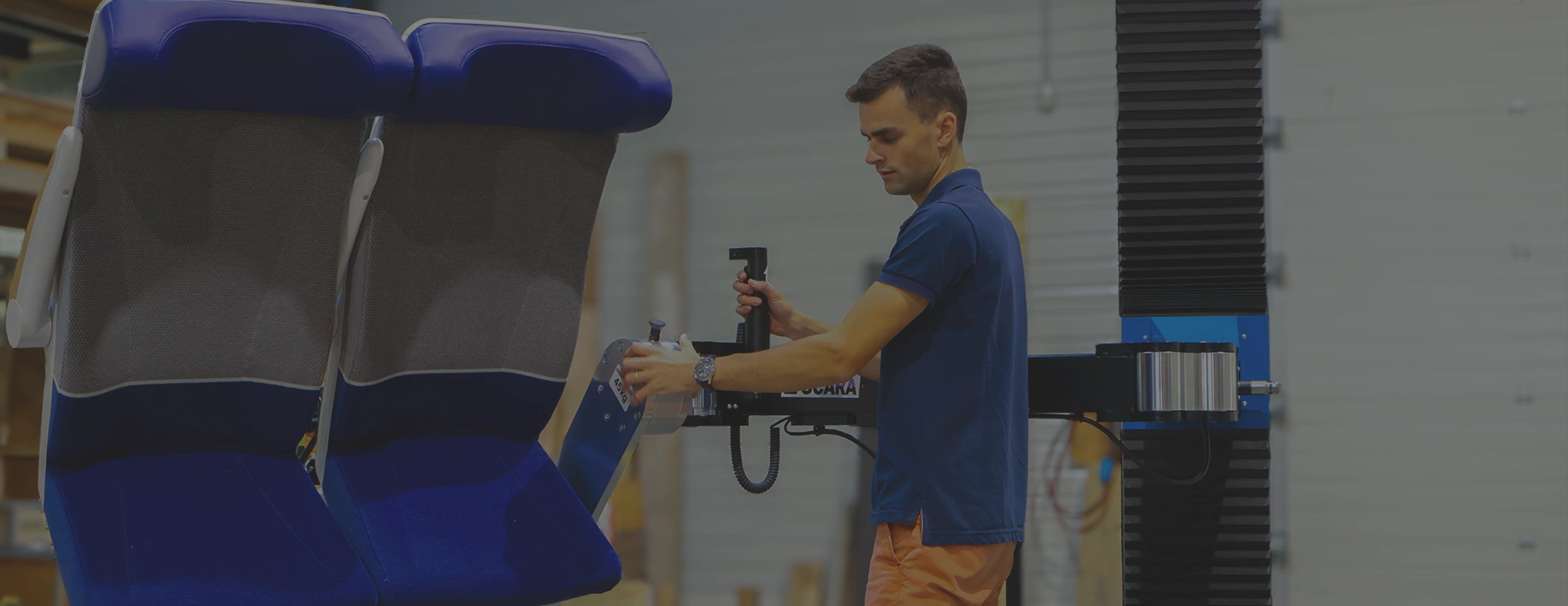

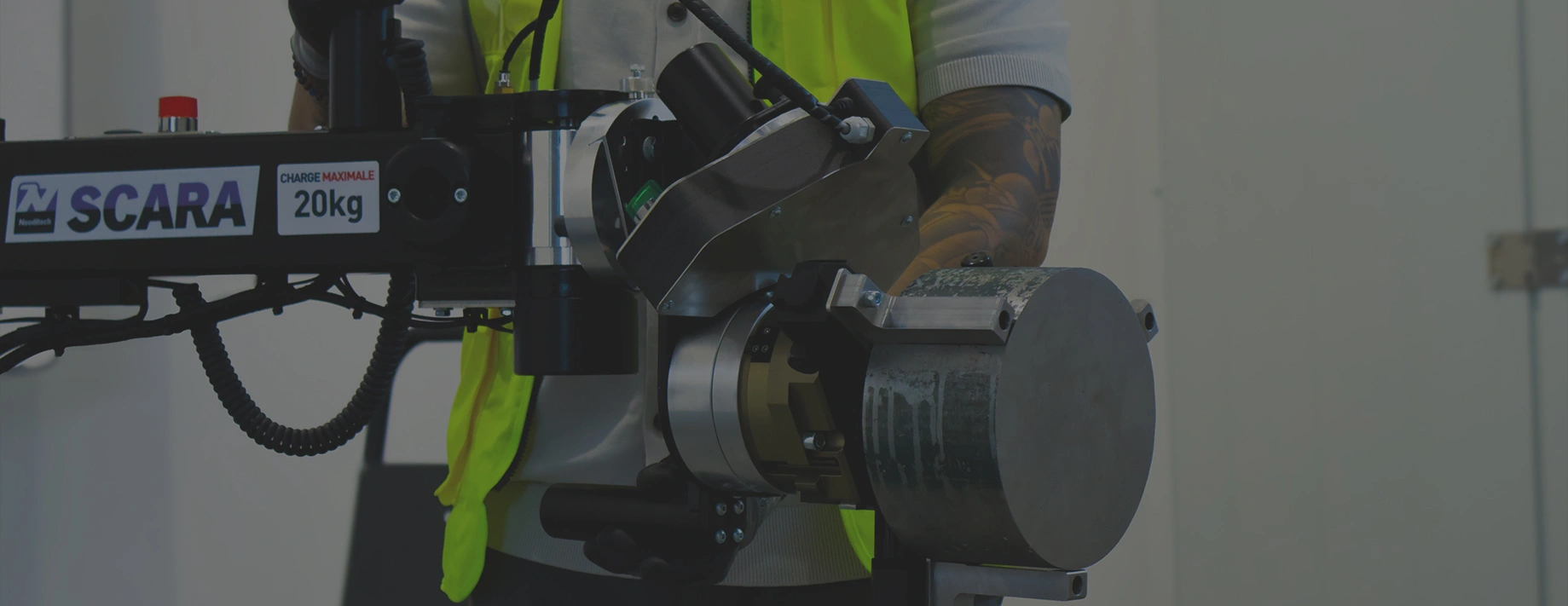

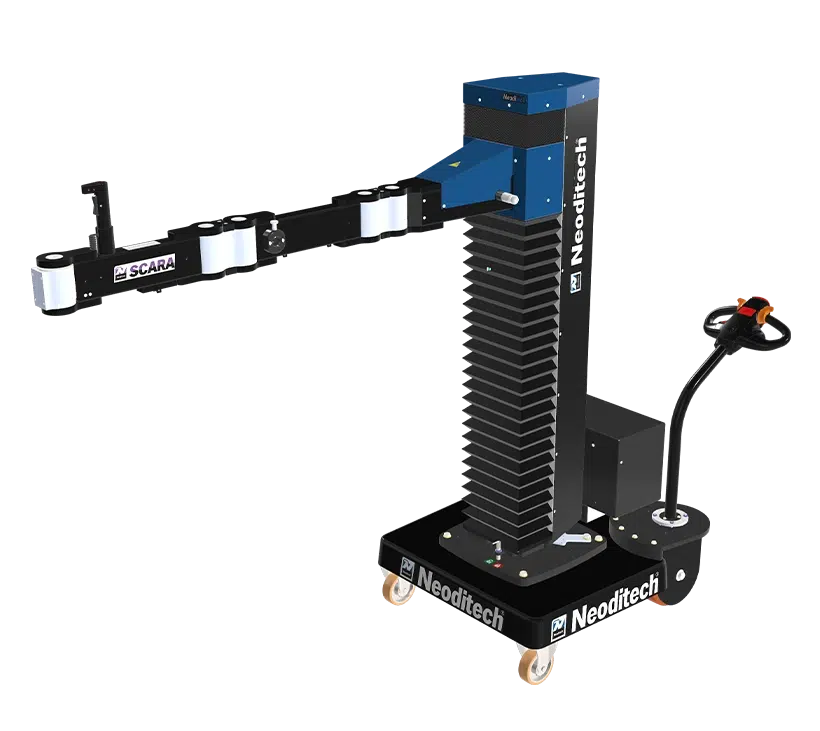

SCARA manipulator arm

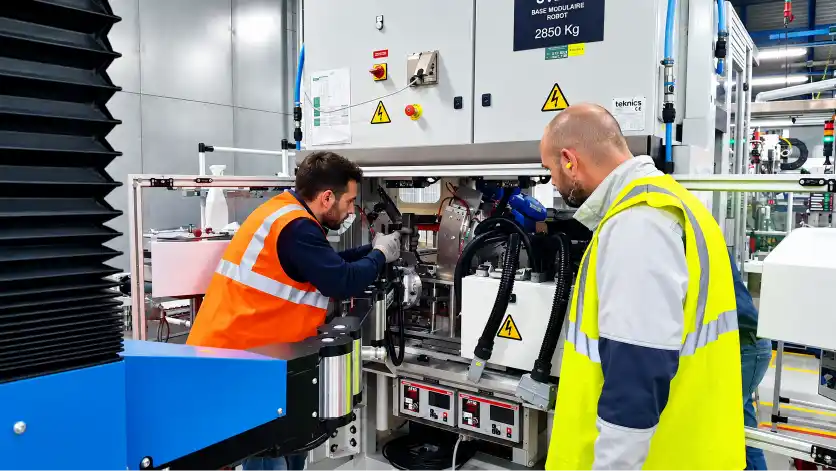

Handles loads up to 100 kg with unmatched precision. Ideal for assembly operations or inserting parts into machine tools. Replicates the smooth and natural movement of the human arm.

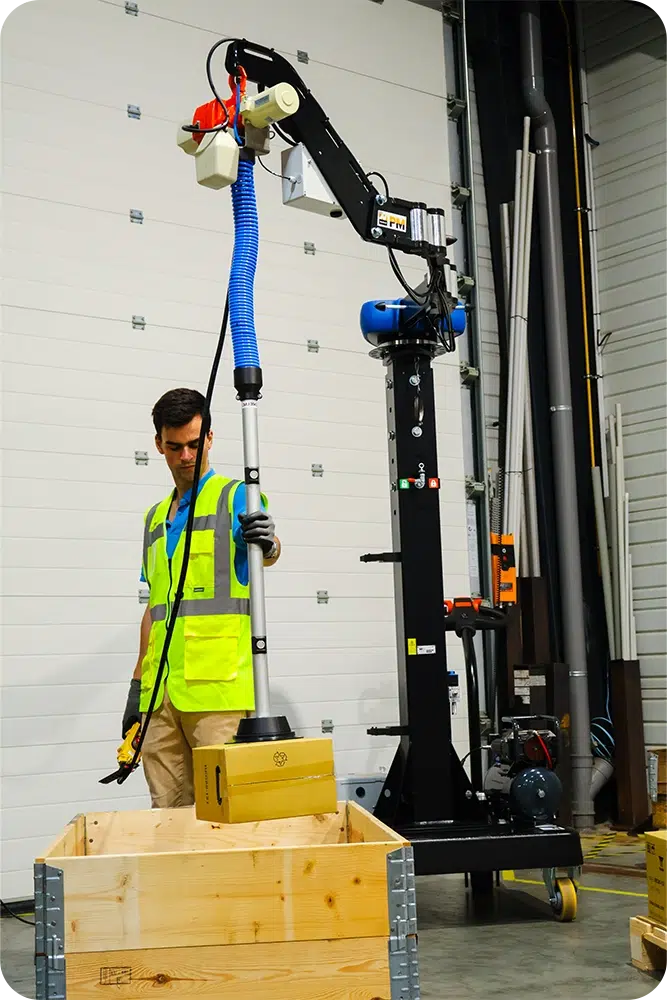

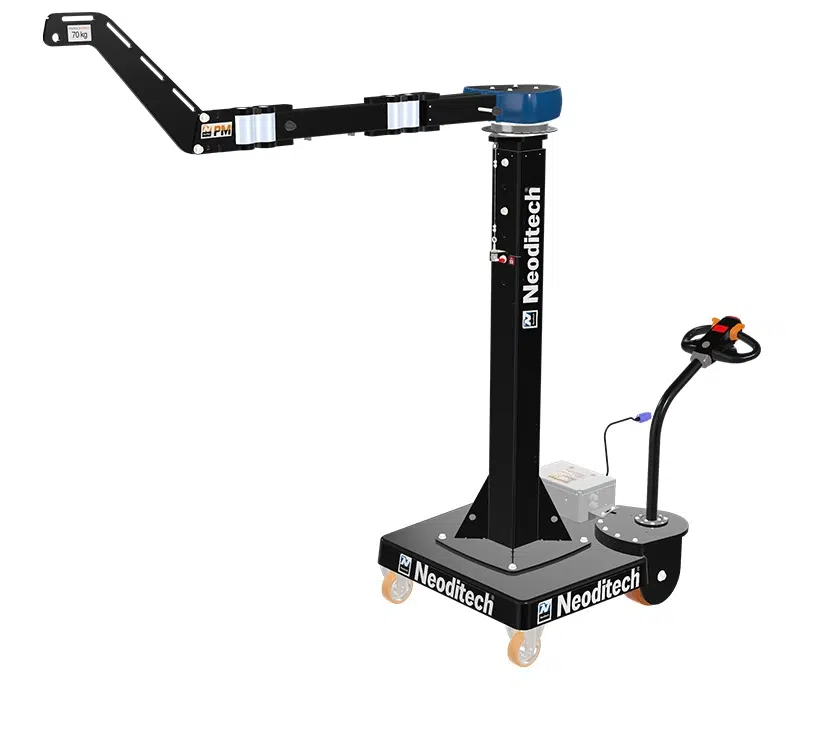

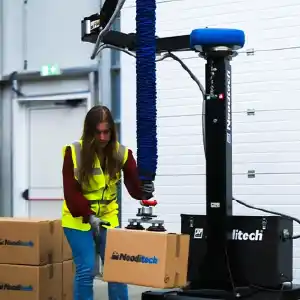

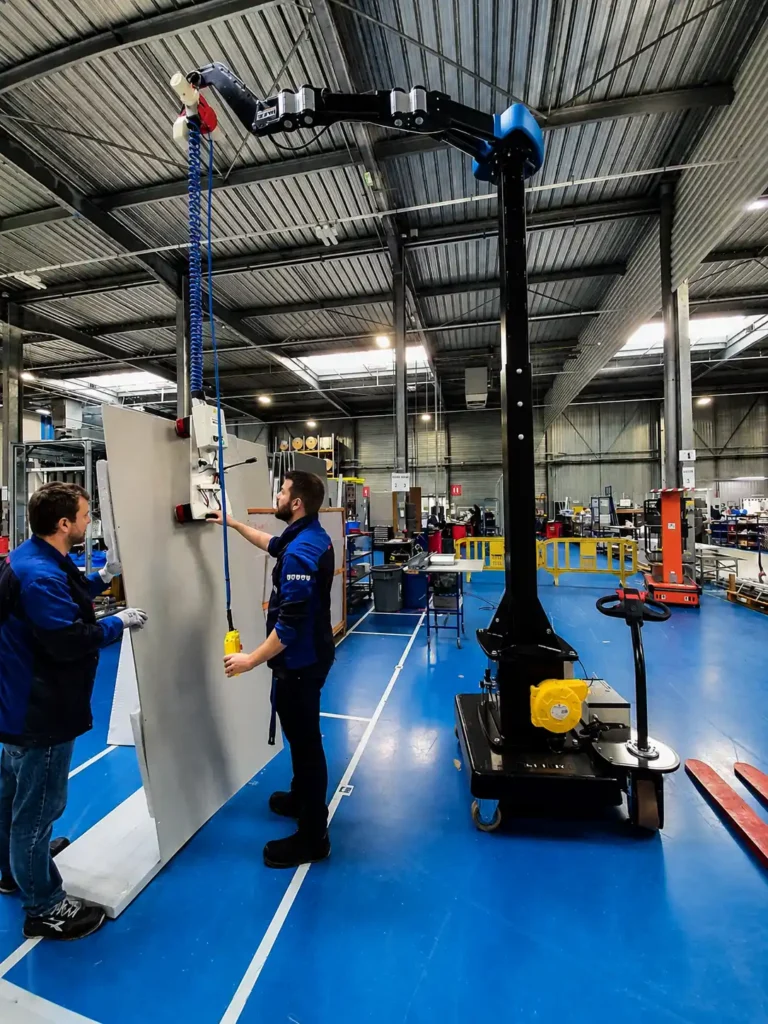

Mobile jib crane
Handles bags, buckets, canisters, drums, and boxes up to 100 kg with smoothness and speed. Equipped with a mobile base, it can be moved anywhere in your workshop according to your handling needs.

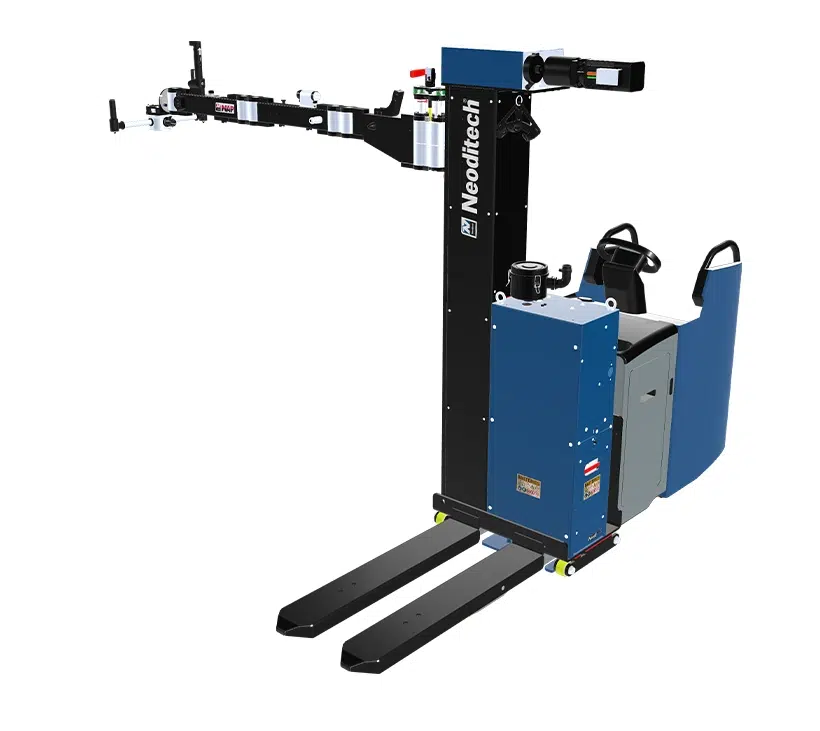

Picking manipulator
Designed for logistics and order preparation for loads up to 100 kg. It can be mounted on all types of pallet trucks and moved throughout your warehouse.

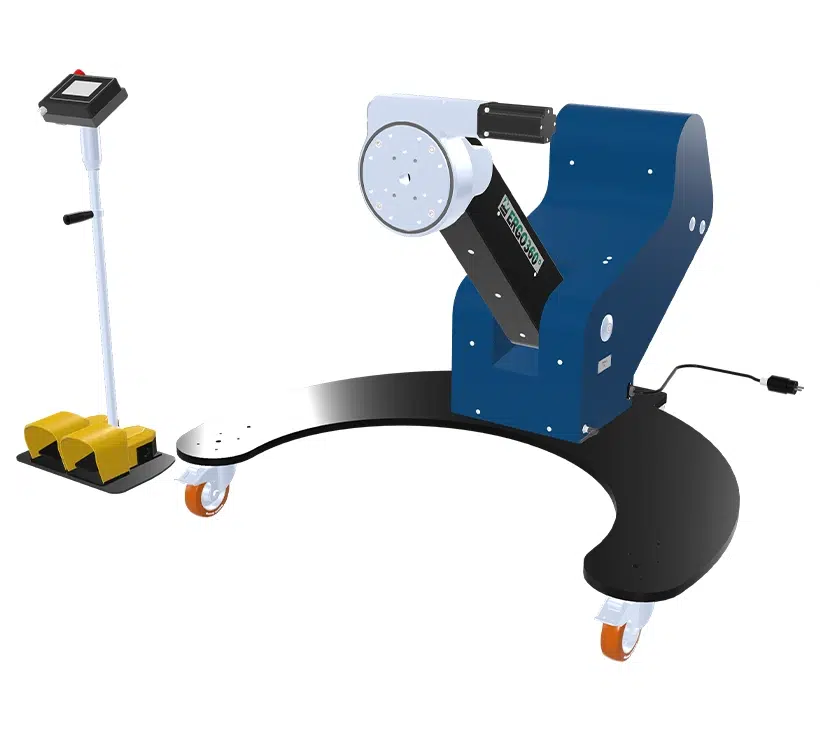

ERGO360° work positioner
Holds and positions parts up to 200 kg at any angle. Ideal for deburring, inspection, and assembly operations. Can be mounted on a mobile wheeled base.
| Range | Load capacity (WLL) | Radius / reach | Vertical stroke | Rotation | Power supply | Mounting |
|---|---|---|---|---|---|---|
| SCARA PARTS / TITAN | 50 kg / 100 kg | 2 m, gripper included | 1 m and 1.20 m | 350° on slewing ring | 100% autonomous (batteries) or 230 V mains | Mobile base by default, floor mounting optional |
| Mobile Jib Crane | 70 kg / 100 kg (50 and 70 kg with extended arm) | 2 m, extended arm 2.7 m | Lifting height 2.5 to 3.8 m | 350° | 100% autonomous with a 24V hoist or 230V mains | Mobile base by default, floor mounting optional |
| Picking Manipulator | 50 kg / 100 kg | Front gripping from 467 and 512 mm above the floor | 1.40 m | On existing pallet truck | 100% autonomous (power and vacuum) | Mounted on existing pallet truck |
| ERGO360° Ergonomic Positioner | 100 to 200 kg | Part orientation from all angles | Depending on configuration | 360° head | 230 V mains | Half-moon mobile base by default |
They trust us
They took the leap
Read the testimonials of our customers who have transformed their businesses thanks to our solutions. Improved productivity, optimized mobility: their success is now yours.
Why invest in an industrial manipulator?
In France, musculoskeletal disorders (WMSDs) are the leading cause of recognised occupational disease: they represented 87% of the cases recognised under the general scheme in the 2023 data. Manual handling of loads is one of the main contributing factors, which is why the INRS and EU-OSHA both recommend removing the risk at the source rather than relying on technique and training alone. Council Directive 90/269/EEC sets the same expectation for manual handling across the European Union.
| Lever | Indicator | Expected effect |
|---|---|---|
| Physical effort | Loads handled at the limit of physical capacity | One operator handles parts that previously required two |
| Posture and repetition | Awkward positions repeated through the shift | Comfortable, controlled movements, all shift long |
| Quality and pace | Variable cycle times and handling damage | Consistent output and fewer damaged parts |
Beyond prevention, a material handling manipulator improves quality and flow. Parts are positioned more accurately, damage and scrap fall, and the line no longer slows down as the shift progresses. Operators gain autonomy, which reduces dependence on two-person teams and relieves scheduling constraints. The benefits show up on the balance sheet through lower absence, lower turnover and better use of available labour.
In which sectors does Neoditech operate?
The physics of handling do not change from one industry to the next, but the constraints do. Cleanliness, hygiene, traceability, throughput and safety requirements differ enormously, and so does the industrial handling equipment we design. Select your sector to see the handling challenges we address most often.
Aerospace
Clients: Airbus, Ariane Group, Dassault, Safran, Lisi…
Defense
Clients: DGA, Thales, KNDS, MBDA, Naval Group, Dassault…
Logistics
Clients: U LOG, GXO, FM Logistic, Labrosse, Geodis, Raud…

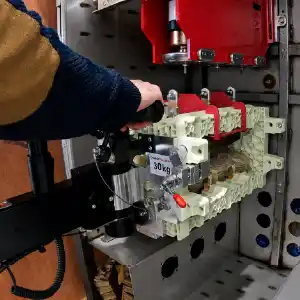

Energy
Clients: Framatome, CEA, Schneider, General Electric, …

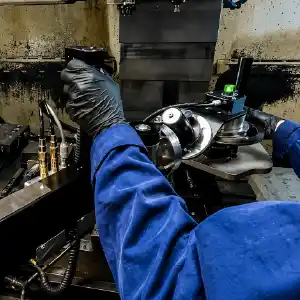

Metalworking
Clients: Arcelor Mittal, Walter, KS Tools, THK, ACB…

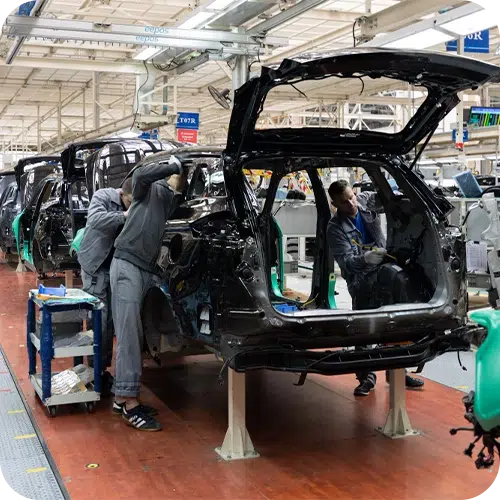

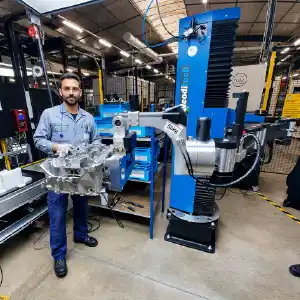

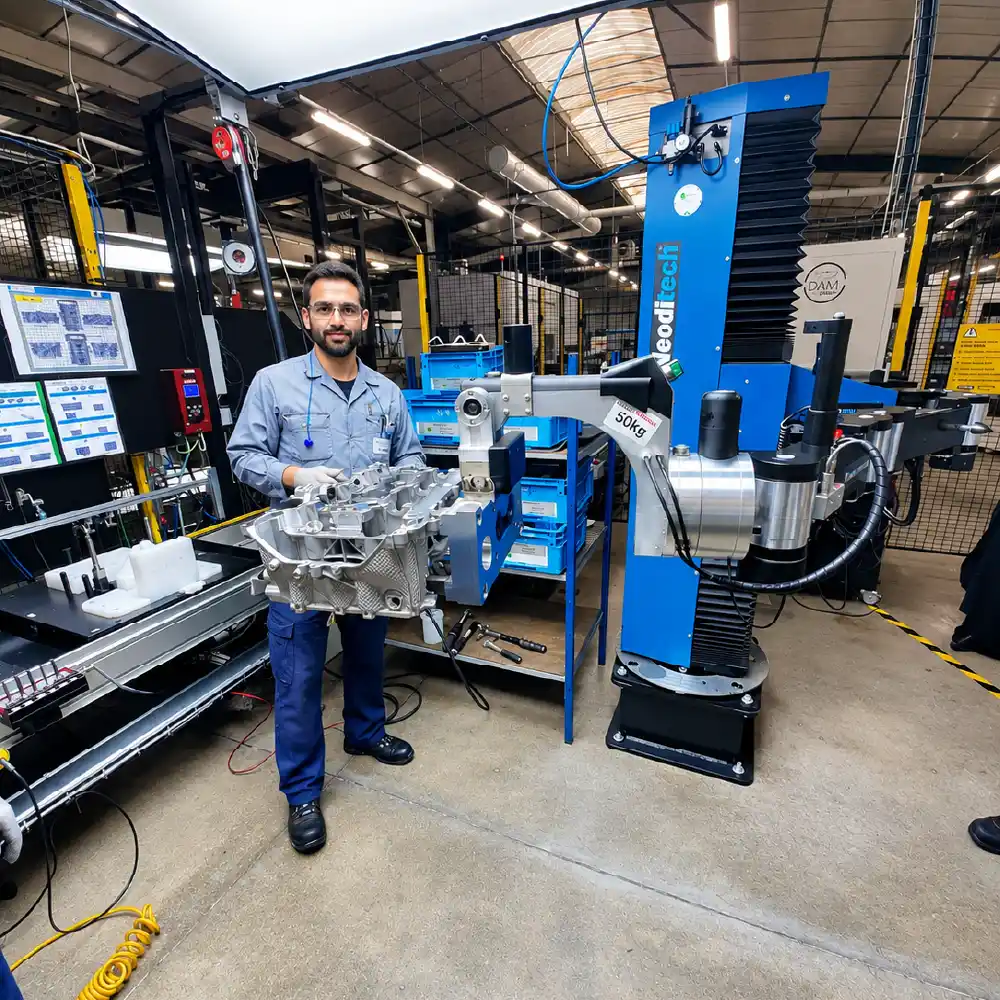

Automotive
Clients: PSA, Renault, Michelin, Toyota, Iveco, Man, Heuliez Bus…

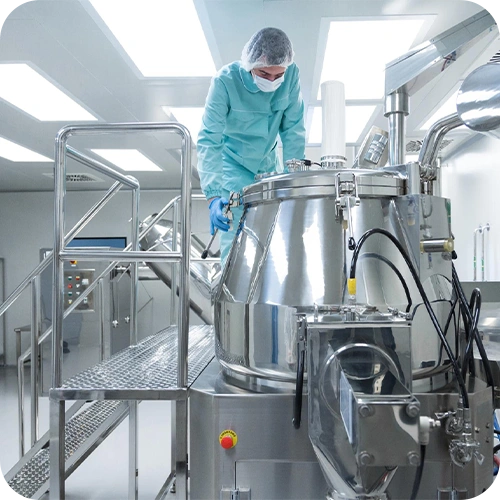

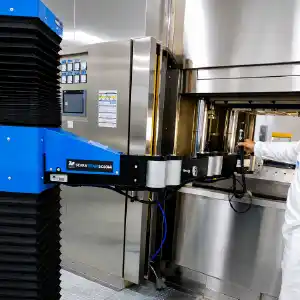

Pharmaceutical
Clients: Sanofi, Pfizer, Unither, Aptar, Fareva, Merck…

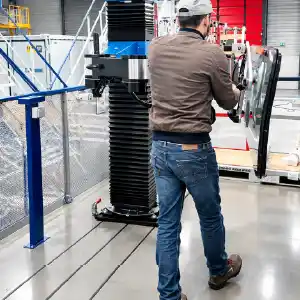

Railway
Clients: Alstom, SNCF, Satys, RATP…

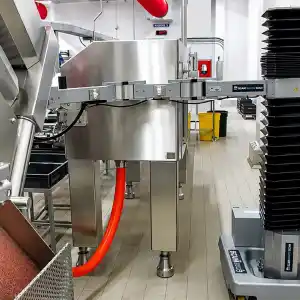

Food industry
Clients: Barilla, Danone, Sodebo, Mars, Panzani, Tipiak…

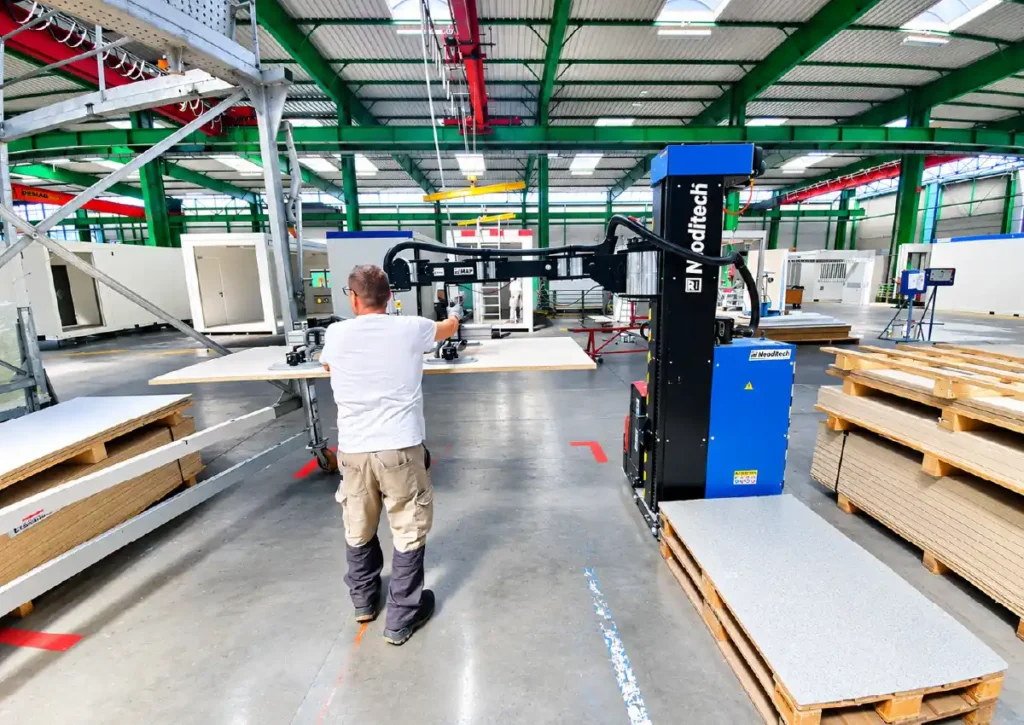

Construction
Clients: Cougnaud, Bouyer Leroux, Saint-Gobain,…

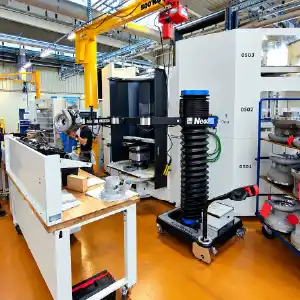

Agricultural machinery
Clients: AGCO, Bobcat, Caterpillar, Claas, CNH, Liebherr, Serta, Trioworld, YTO…

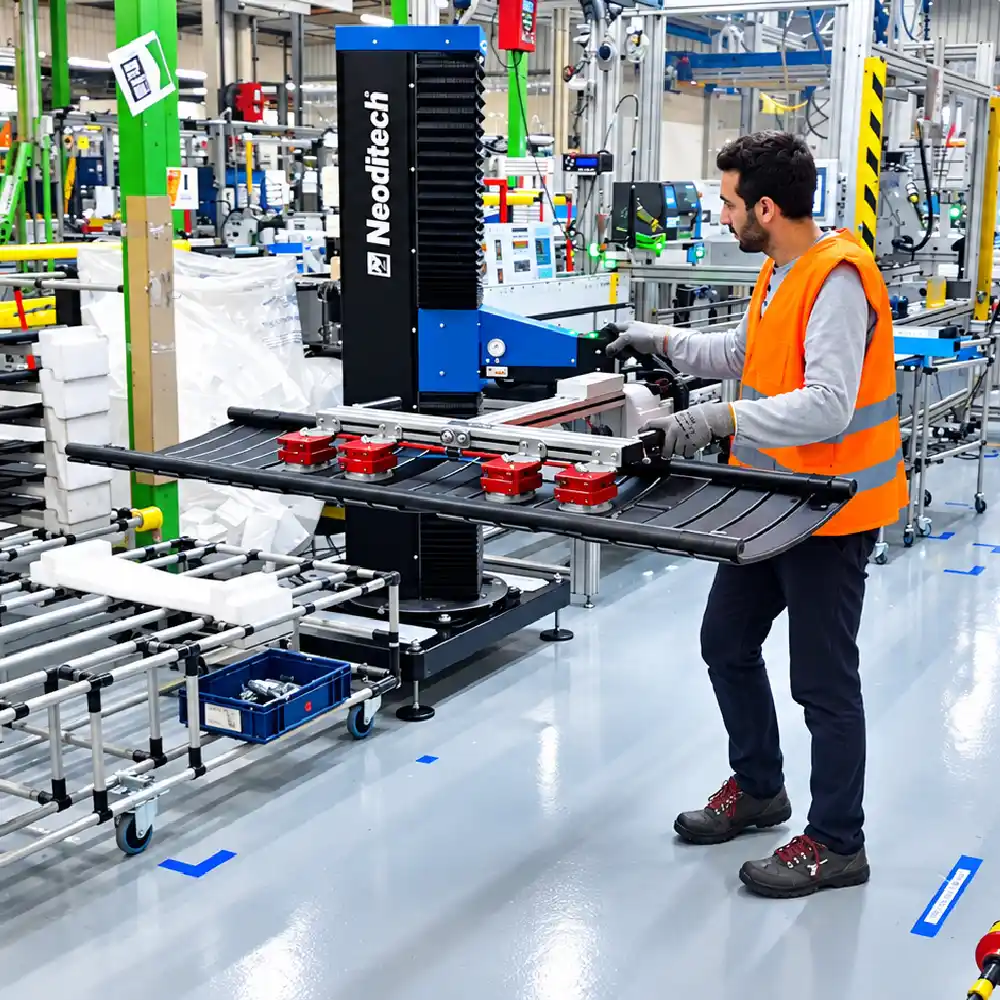

Miscellaneous industries
Clients: Bosch, Air Liquide, Siemens Gamesa, ABB, SKF, Tetra Pack, Atlantic, BIC…
Movement in space / Mobility / Fluidity / Compactness / Precision / Flexibility /
Movement in space / Mobility / Fluidity / Compactness / Precision / Flexibility /
French know-how and end-to-end support

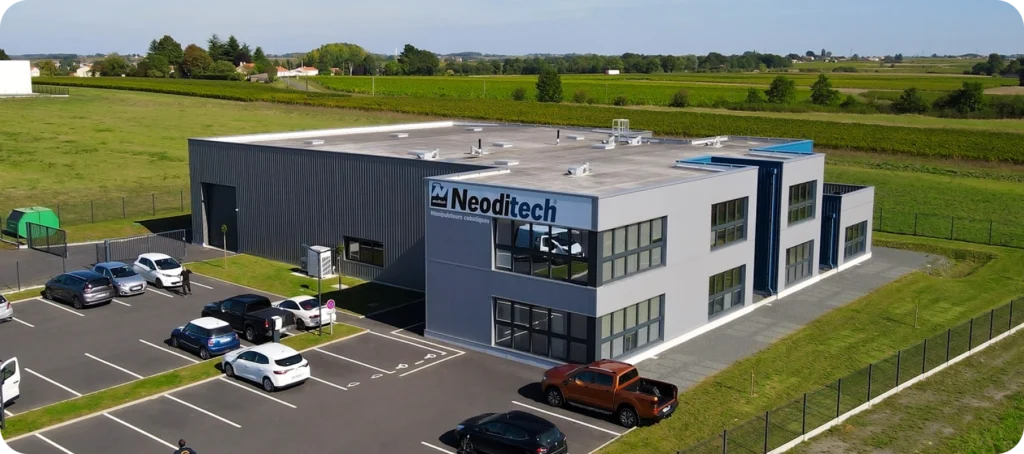

Neoditech has been a manufacturer since 2007, with 24 employees and 80% of our suppliers located within 30 km of our Mouzillon site. This industrial proximity guarantees responsiveness, quality control and parts availability.
We support you in 5 steps, from workstation analysis through to after-sales service.
- Workstation study and analysis of actual work: we observe the movement, the load and the pace at your site.
- Demonstration: in one of our showrooms in Mouzillon, Strasbourg or Lyon, or directly at your premises.
- Custom gripper design: the gripping tool is designed for your part, not the other way around.
- Manufacturing and integration: production in France and commissioning on your existing line.
- Training and after-sales service: your operators are autonomous within a few hours, and we remain available afterwards.
| Step | What Neoditech does | What you get | Indicative duration |
|---|---|---|---|
| 1. Audit and measurement | Site visit, observation of the task, weighing and dimensioning of parts | A precise picture of your workstation and loads | By appointment |
| 2. Study and simulation | Solution design, 3D modelling, validation of the kinematics with you | A validated solution matched to your cycle time | By appointment |
| 3. Manufacture and pre-assembly | Production in our French workshop, bench testing under load | Equipment tested under load before delivery | Depending on project |
| 4. Installation and training | On-site assembly, commissioning, operator and maintenance training | A line running from day one with trained teams | Depending on project |
| 5. Follow-up and support | Performance check, spare parts, maintenance and upgrades | Long-term support as your production evolves | A few hours |
How to choose the right industrial manipulator?
Choosing a handling solution is a sizing exercise before it is a purchasing decision.
Weight and nature of the load
Our ranges cover 10 to 200 kg. Beyond weight, the shape, rigidity and surface of the component determine the end effector type: pneumatic suction cup, mechanical clamp, electromagnet or bespoke tooling.
Mobility needs
Do you need to move your industrial manipulator very frequently? Opt for a mobile base with an electric drive wheel. Is moving it only occasional? Choose a mobile base with feet. If you have no need for mobility, our equipment can be anchored to the floor (except the Mobile Order Picker).
Gripper customization
The prehensor is what makes the load feel weightless: a custom gripper matches the geometry, the material and the hygiene requirements of your component. Clean room, wash-down zone, foundry or cold store, each environment imposes its own materials and protection ratings, and we build these constraints in from the first study.
Frequently asked questions about industrial handling and Neoditech products
An industrial manipulator is always guided by an operator, who decides where the load goes while the machine carries its weight. An industrial robot follows a pre-programmed sequence autonomously. Under ISO 8373, a device that is automatically controlled, reprogrammable and programmable in three or more axes qualifies as a robot, whereas a continuously hand-guided device does not. The International Federation of Robotics draws the same line: a manipulator that an operator steers in real time falls outside that definition.
Our industrial manipulators cover loads from 10 to 100 kg, and the ERGO360° positioner supports up to 200 kg. Configurations above that range are possible depending on the kinematics and the gripping solution.
No specific certification is required. A manipulator is intuitive: the operator guides the load with a control handle, and the machine neutralises the weight. We still deliver on-site training for operators and maintenance teams during commissioning, covering daily use, end effector changes and basic checks.
Yes. Most of our projects are retrofits on existing lines. During the initial audit we check structures, headroom, access and safety constraints, then mount the manipulator depending on what the plant allows. Integration is handled by our own teams, which limits disruption to production.
By removing the two main causes of musculoskeletal disorders in handling: the effort required to support a load and the awkward postures that come with it. When the weight is neutralised, the operator can position the part with a comfortable posture and controlled movement.
Very little. Our manipulators are robust mechanical systems with no complex electronic components in the loading circuit; routine maintenance is therefore limited to periodic visual inspections of more sensitive parts, such as the gripper or suction tubes, for example. Lubrication of certain parts is also required. We supply replacement parts and offer maintenance contracts, and our teams are available to perform adjustments and upgrades as your production evolves.
